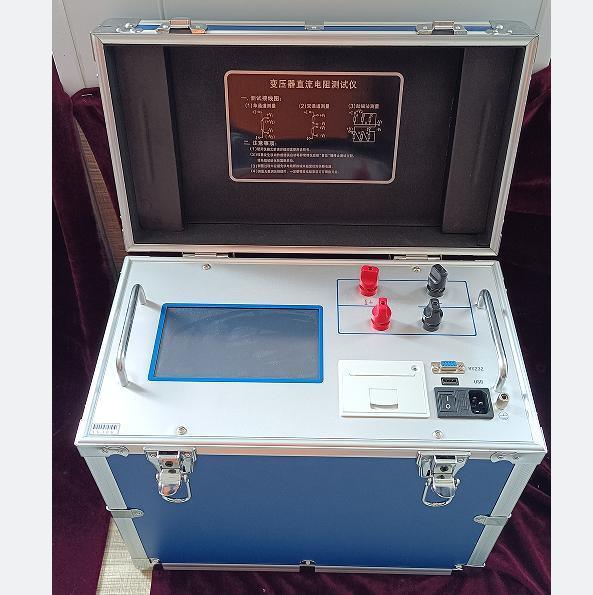

XHZ1040 Digital Transformer Winding DC Resistance Tester 40A with
After-sales Service
Model:XHZ1040(40A)
Transformer DC resistance is a must-test item for semi-finished
products, finished products factory test, installation, overhaul,
change of tap changer, handover test and preventive test of power
sector in transformer manufacturing. It can check the welding
quality of the winding joint and whether the winding is
short-circuited between turns. It can check whether the contact of
each position of the voltage tap changer is good, whether the
actual position of the tap changer is consistent with the indicated
position, whether the lead wire is broken, and the multi-strand
wires are wound in parallel. Whether there is a stock break, etc.
In order to meet the needs of fast measurement of transformer DC
resistance, the XHZ1040 transformer winding DC resistance tester
developed by our company. The instrument adopts a new power supply
technology, which has the characteristics of small size, light
weight, large output current, good repeatability, strong
anti-interference ability and perfect protection function. The
whole machine is controlled by a high-speed single-chip
microcomputer, with a high degree of automation, and has the
functions of automatic discharge and discharge alarm. The
instrument has high test accuracy and simple operation, and can
realize fast measurement of transformer direct resistance.
| Item | Technical indicators and parameters | Remarks |
| Test current | <20mA,2.5A,5A,10A,20A,40A | |
| Test range | 50μΩ~500mΩ (40A)
100μΩ~1Ω (20A) 500μΩ~2Ω (10A)
1mΩ~4Ω (5A)
2mΩ~8Ω (2.5A) | Accuracy:±(0.2%+2digit) |
| 10Ω-20KΩ (<20mA) | Accuracy:±(0.5%+2digit) |
| Minimum resolution | 0.1μΩ | |
| Display | LCD Monitor | Resistance display with 4 significant digits |
| data storage | 1000 group | |
| working environment | ambient temperature:0ºC~40ºCRelative humidity: <90%RH,no condensation | |
| Power supply | AC 220V±10V,50Hz±1 Hz | Fuse 10A |
| Size: | Host: 405×230×355(mm)
Wire box: 360×260×180(mm) | |
| Weight: | Host 15.1KG wire box: 5.75KG | |
| Test lead length | Standard 13 meters | Can be customized |
| Maximum power consumption | 1000W | |
Packaging: Wooden case filled with foam
Shipping: by Air, Sea, Express, etc.
Shipping time: 7-15 days if it's in stock.
