    Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation

    Ask Lasest Price
    Certification : CE, ISO
    Brand Name : XZH TEST
    Model Number : XHZ1010
    Payment Terms : T/T
    Supply Ability : 1000 PCS/Year
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation


    Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation

    Product Description


    Transformer DC resistance is a must-test item for semi-finished products and finished products in transformer manufacturing, factory testing, installation, overhaul, after changing the tap changer, handover test and preventive test of the power department. In order to meet the need for rapid measurement of transformer DC resistance, our company has developed the XZH1010SC handheld DC resistance tester. This instrument adopts new power supply technology and has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability, and complete protection functions. The whole machine is controlled by a high-speed microcontroller, has a high degree of automation, and has automatic discharge and discharge alarm functions. The instrument has high testing accuracy and is easy to operate, and can quickly measure the direct resistance of the transformer.

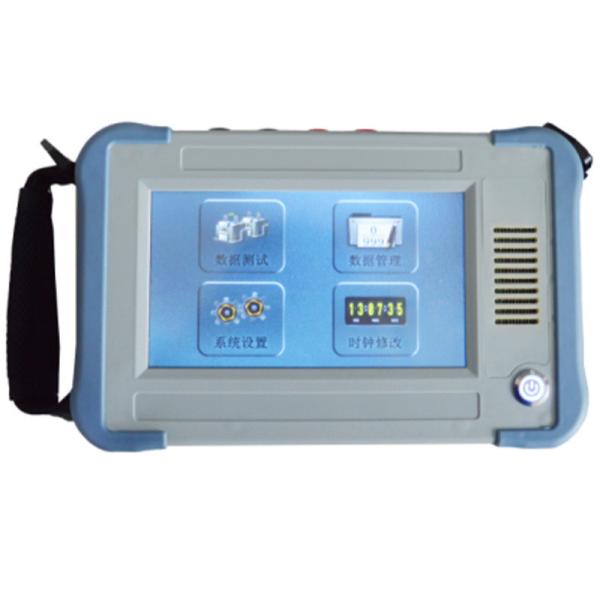

    Detailed Photos
    Large Screen Display Handheld DC Resistance Tester 10A Factory Customizable
    Product Parameters



    Test current<20mA40mA200mA1A3A10A
    Measuring range100Ω-50KΩ1Ω-200Ω100mΩ-50Ω10mΩ-10Ω5mΩ-3Ω0.5mΩ~0.2Ω
    Accuracy±(0.5%+2words)±(0.2%+2 words)
    Min resolution0.1μΩ
    Operation methodTouch screen operation
    DimensionsHost: 252*160*65(mm) Outer box: 425*335*210(mm)
    WeightHost: 2KG Outer box: 8KG
    Battery specifications14.8V 5200mAh
    Test lead lengthStandard 5 meters length can be customized
