The XHLJ504 cable route tracer(cable pipe locator) is composed of a high-power path signal generator(transmitter) and
receiver required for detecting buried cable paths.
The basic principle of the cable path meter is to use a path signal
generator (ie, the path meter signal transmitting host) to input a
path pulse signal into the cable under test, thereby generating
electromagnetic waves, and then receiving them with a probe, and
the receiver amplifies the received signal. After processing, the
output is sent to the earphone and the pointer meter.
This cable route tracer judges the buried path and depth of the
cable according to the sound peaks, sound valleys and the
deflection degree of the pointer meter in the earphone.
Multi-function
The cable path receiver is used in connection with probes and
headphones, etc., and can be used as a cable fault pinpointer.
Main components
This cable pipe locator is mainly composed of transmitter and
receiver, the two parts are shown as below.
Technical Parameters
Transmitter
| Output signal | 15kHz intermittent |
| Output power | 100W |
| Output current | 0～2A |
| Working power | 220V (1±10%) 50Hz (1±5%); |
Receiver
| Magnification | 500,000 times |
| Detection accuracy | ±0.2m |
| Output impedance | 350Ω |
| Working power supply | two standard 9V batteries |
| Quiescent current | <10mA |
Product Features
1. Using the traditional electromagnetic induction principle,
strong anti-interference ability.
2. With over-current and short-circuit protection functions, it is
safe and reliable.
3. High power output, not limited by cable length, open circuit can
also find a path.
4. The output is steplessly adjustable, suitable for various test
sites, with strong adaptability.
5. Super strong magnification, the detection depth is greater than
10 meters.
6. Ultra-low power consumption design, the quiescent current is
less than 10mA.
7. The design of the analog meter, the signal strength and trend
are clear at a glance.
8. The zero level can be adjusted arbitrarily, which is suitable
for all kinds of strong and weak scenes.
On-site cable path test --indication diagram

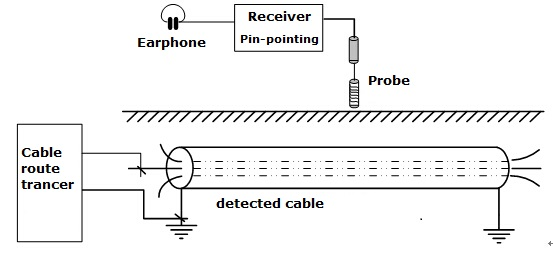

General route detect connecting wire diagram
Super-length or breaking cable route detection wiring diagram
Special route detection wiring diagram
Test buried depth of the cable
When you judge the buried depth of the cable, you can place the
probe at an angle of 45 degrees with the ground on the position of
the cable that has been measured, "move outward" perpendicular to
the path. Find the most minor sound point in the middle of the
probe, then the distance the probe moves is the buried depth of the
cable. For the above operation essentials, please refer to the
schematic diagram of probe placement in the following figure.

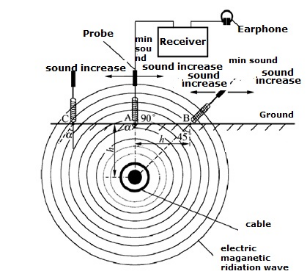

Schematic diagram of probe placement
