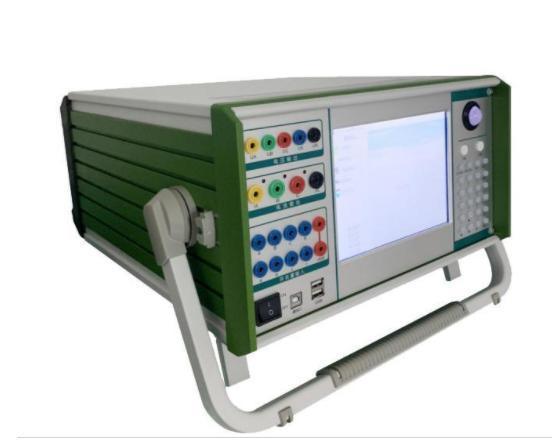

Product name: Relay Protection Tester
Model: XHJB634 (3 phase) with different color
XHJB634 microcomputer relay protection calibrator is a new type of
miniaturized microcomputer relay protection tester fully realized
by modern advanced microelectronic technology.
Product description:
1.High performance Industrial control computer is adopted as the
controlling computer, through which you can run the windows
operating system directly.
2.8.4"LCD display, tracking ball and optimized keyboard are
allocated on the faceplate of this tester, which can be used
without the external mouse and keyboard.
3.USB interface, 10-100M net mouth and serial communication
interface are located on the back plate of this tester, through
which you can access data, communicate data and upgrade software
conveniently.
4.The whole process and the result of the test will all be showed
on the LCD.
5.The English operational interface of the complete set is very
friendly and convenient.
6.The tracking ball and keyboard on the faceplate will implement
the operation. The operation is simple and convenient, and is easy
to be mastered. Operator only needs a little knowledge of computer.
7.Keyboard and mouse interface are also allocated on the faceplate.
If you would like to use the external mouse and keyboard, through
pluging them with corresponding interfaces, you can operate this
tester just like operate a desk-top computer.
| AC current output | output precision | class 0.2 |
| Phase current output (RMS) | 0~40A |
| Three parallel current output (RMS) | 0~120A |
| Phase current allowable working value for a long time (effective
value) | 10A |
| Phase current maximum output power | 420VA |
| The maximum output power | 900VA when the three-parallel current is at the maximum output |
| When the maximum output of three parallel currents is allowed to
work, the working time is 10s |
| Frequency range (fundamental wave) | 20~1000Hz |
| Harmonic times | 1-20 times |
| DC current output | Output accuracy | class 0.2 |
| Current output | 0~±10A / each phase, 0~±30A / three parallel |
| Maximum output load voltage | 20V |
| AC voltage output | Output accuracy | class 0.2 |
| Phase voltage output (effective value) | 0~120V |
| Line voltage output (effective value) | 0~240V |
| Phase voltage/line voltage output power | 80VA / 100VA |
| Frequency range (fundamental wave) | 20~1000Hz |
| Harmonic times | 1-20 times |
| DC voltage output | Output accuracy | class 0.2 |
| Phase voltage output amplitude | 0~±160V |
| Line voltage output amplitude | 0~±320V |
| Phase voltage/Line voltage output power | 70VA / 140VA |
Packaging: Wooden case filled with foam
Shipping: by Air, Sea, Express, etc.
Shipping time: 7-15 days if it's in stock.
