Product Description

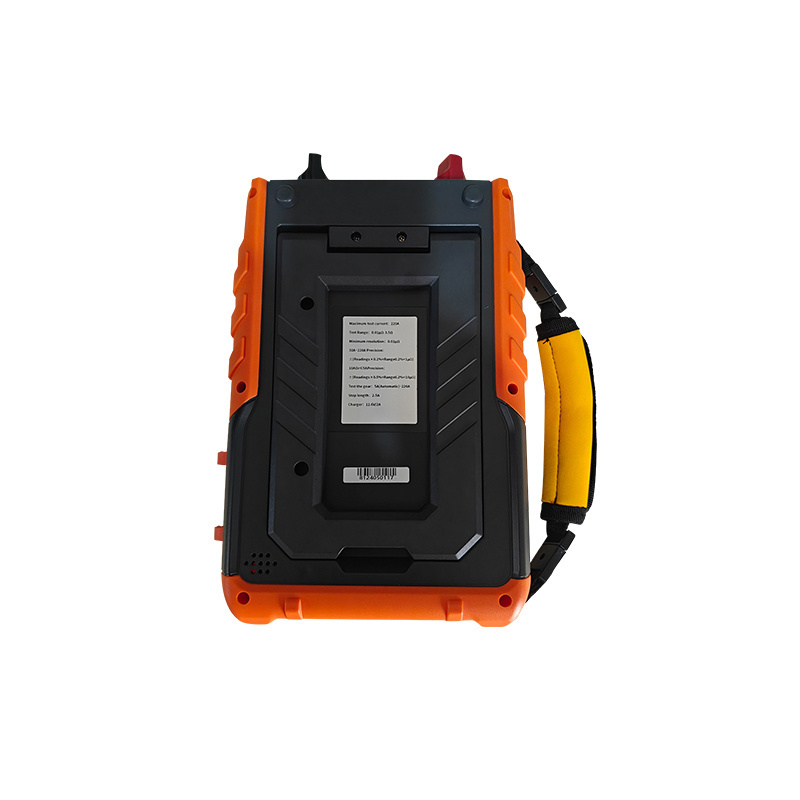

XHHL3200H Handheld contact resistance tester micro-ohmmeter
The loop resistance tester, also known as micro-ohmmeter and
contact resistance tester, is an instrument developed by our
company to measure the contact resistance of various high-voltage
switches, high-voltage circuit breakers, metal welding components,
metal conductor loop resistance, and precision micro-ohm
resistance.
This instrument is based on a high-speed microcontroller, combined
with a high-precision A/D converter, digital measurement
technology, anti-power frequency interference technology, and
advanced programmable current source technology, so that the
built-in large-capacity rechargeable lithium battery can generate
ripple-free DC current, with a maximum output of 220A. The output
current can be fine-tuned in steps of 2.5A, with up to 87 current
gears, to meet the test of multiple current gears; Meanwhile, the
time (10s, 20s, 30s, 40s, 50s, 60s) can be set to continuously
output large current tests, which can be tested with high
precision, high stability, and high intelligence in a strong
interference environment; in terms of circuit design, it has
functions such as open circuit protection and overheating
protection.
The instrument uses a 5.6-inch color LCD display with Chinese and
English operation interfaces, which are clear and intuitive. It is
also equipped with standard resistors, and the instrument can be
self-checked for accuracy before formal testing. The instrument has
the advantages of wide range, large data storage capacity, strong
anti-interference ability, simple operation, handheld, small size,
and easy to carry. A printer can also be selected for data
printing.
Technical specification
| Function | Contact resistance tests of high-voltage switches and circuit
breakers; connection resistance tests of metallic welding components; circuit resistance tests of conductors; precise low resistance tests. |
| Power | Built-in 12.6V 9000mAh rechargeable lithium battery |
| Measurement Method | 4-wire measurement |
| Charger | 12.6V/2A |
| Display | 5.6-inch industrial LCD with high-brightness color |
| Test Interface | I+, I-, U+, U- |
| Output Current | ≤5A, 10A, 30A, 50A, 80A, 100A, 200A, 220A |
| Step Current: 2.5A, up to 87 current gears. |
Measurement Range
| ≤5A : | 1μΩ~3500mΩ |
| 10A : | 0.1μΩ~200mΩ |
| 30A: | 0.1μΩ~20mΩ |
| 50A: | 0.01μΩ~15mΩ |
| 80A: | 0.01μΩ~10mΩ |
| 100A: | 0.01μΩ~5mΩ |
| 200A : | 0.01μΩ~600uΩ |
| 220A : | 0.01μΩ~500uΩ |
| Resolution | 0.01μΩ |
| Accuracy | 30A~220A
±(reading*0.1%+measurement range*0.2%+1μΩ)
10A or less than 5A
±(reading*0.5%+measurement range*0.2%+10μΩ) |
| Measurement Time | ≤100A:fast mode(recommend),10s, 20s, 30s, 40s,50s, 60s
>100A:fast mode |
| Printer | Optional, press the print button to print the test results |
| Data Storage | After the completion of the test, the data is automatically and
cyclically saved with up to 999 sets of data stored. |
| Size of the instrument | L188mm×W85mm×H312mm |
| Size of Outer Package | Appro L550mm×W420mm×H215mm |
| Test Leads | Weight of the instrument: appro 2.2kg |
| Total Weight: appro 9.3kg |
| Test Leads | Standard Length: 3m (5m is optional) |
| Connecting the test leads to the current port and voltage port with
a resistance of less than 10mΩ |
| Data Delete | Select Format Memory in the setting interface to delete all data |
| Data Query | Enter the Data Query interface, press the up, down, left, or right
keys to browse the stored data |
| Automatic shut-down | The battery will automatically shut down if no operation within 15
minutes after power on |
| Battery Voltage | When the symbol""is displayed on the upper right corner of the
instrument, it means that the battery power is exhausted, and it
will automatically shut down. Please charge it in time. |
| Backlight | High, medium, and low brightness |
| Working Current | The current is 230mA in a non-test state |
| The current can be set in the test state |
| Circuit Protection | Open circuit protection, overheat protection |
| Temperature Protection | By temperature monitoring |
| Working Temperature and Humidity | -10ºC~50ºC;below 90%RH,no condensation |
| Storage Temperature and Humidity | -10ºC~60ºC;below 70%RH |
| Charging Voltage | 12.6V |
| Safety Standard | IEC61010-1, CAT 600V,Pollution Level 2, JJG724-1991 Verification Regulation of DC
Digital Ohmmeter, JJG166-1993 Verification Regulation of DC
Resistors, DL/T967-2005Verification regulation of loop resistance
tester and DC resistance high-speed tester. |
Packaging: Wooden case filled with foam
Shipping: by Air, Sea, Express, etc.
Shipping time: 7-15 days if it's in stock.
