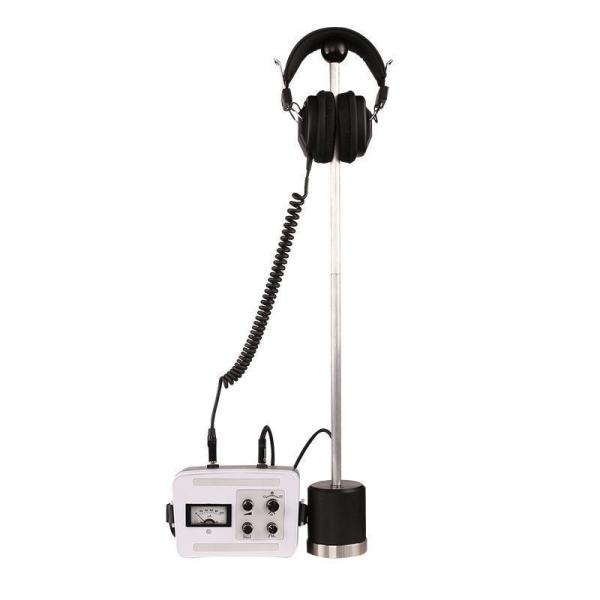

Underground Precise Cable Fault Locator With Acoustic Magnetic Detection

Ask Lasest Price
Certification :	CE, ISO
Brand Name :	XZH TEST
Model Number :	XHDD503
Payment Terms :	T/T
Delivery Time :	5-8 days
Supply Ability :	2000piecs/Year

Add to Cart

Product Details
Company Profile

Underground Precise Cable Fault Locator With Acoustic Magnetic Detection

XHDD503 cable faults pin-pointer is used for pin-Pointing kinds of cable faults of underground Power cable by using acoustic and magnetic method. by means of Electronic flashover generates by the impulse generator. Magnetic sound signal of the electronic flashover wave is picked up and amplified through the probe, and judged by auditory and visual to accuracy find out the underground cable faults.

Acoustic Magnetic Detect Underground Cable Fault Locator for Precise Location

The XHDD503 cable fault locator is very small and light, it is packed in a protective PVC case, easy to carry after the user finished detection.

1. Pointer meter: indicates the magnetic field strength during flashover discharge at the fault point;
2. Volume adjustment: Adjust at fixed points and paths so that our ears can hear more appropriate sound signals;
3. Working mode: Select the working mode (shutdown, fixed point, path);
4. Frequency adjustment: Adjust the receiving frequency during the path detection process so that our ears can hear path signals that are easier to identify. Adjusting at fixed points can effectively avoid radio signals;
5. Level adjustment: adjust the baseline of magnetic field strength so that the meter head can swing effectively;

Receiving mode	Magnetic sound synchronization
enlargement factor	500,000 times
Working power	Standard 3.7V 3200mAh battery 4 cells
quiescent current	<10mA
output impedance	350Ω
Positioning accuracy	±0.2m
Power dissipation	Quiescent current is less than 10mA, The working current is not more than 10mA
Working conditions:	Ambient temperature: -25~65ºC; Relative humidity: ≤90%.

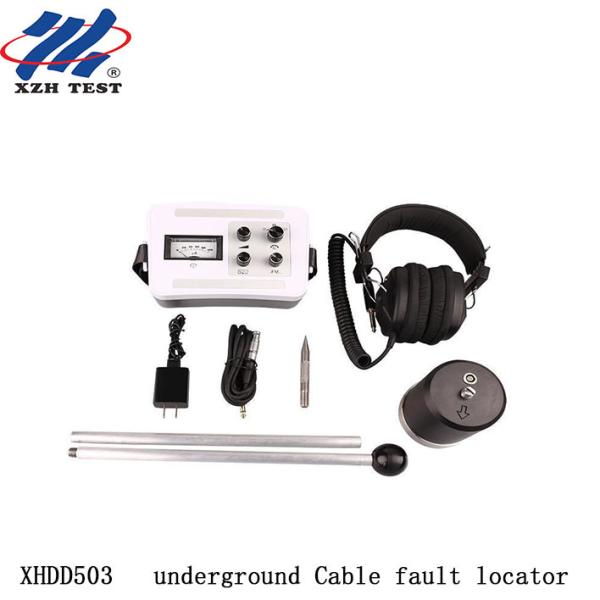

1	Cable fault pinpointer	1
2	Headphone	1
3	Probe	1
4	Audio line	1 SET
5	Charger	1

Acoustic Magnetic Detect Underground Cable Fault Locator for Precise Location

XZH TEST is a professional cable fault detection equipment manufacturer. We are a young team. Our development philosophy is humanized management, intelligent cloud-based products, and internationalized operations. Our development mission is to make electrical equipment free from undetectable failures.

Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of testing equipment.

What we can do

We have the ability to innovate new products and technologies.

We can provide complete system solutions for your project.

We provide online and offline practical and theoretical training.

We provide instrument repair and calibration.

Acoustic Magnetic Detect Underground Cable Fault Locator for Precise Location

1. Are you a trading company or a manufacturer?

We are a professional manufacturer with more than 10 years of experience. We can strictly control the quality of parts and finished products.

2. What is the delivery time and inventory?

If our best-selling products are in stock, it will be 5-8 working days for shipment. But for mass production and customized production, the time will take 2-4 weeks.

3. What are your payment terms?

Payment ≤ USD 2000, 100% T/T prepayment. Orders over USD 2000 can be negotiated.

4. How long is your product warranty?

We provide 1 year warranty for the equipment.

5. How do you ensure quality?

The product links include R&D, manufacturing, commissioning and technical support, following strict and scientific management principles. Therefore, we can support strong production and R&D capabilities, and can produce high-quality products at competitive prices to meet customers' high requirements.

6. What support can I get?

We will provide training support, marketing support, technical support and supply chain support. You can contact us for more information.

7. Where is your factory? Can I visit your factory?

We are located in Xi'an, Shaanxi, China. We are close to Xi'an Xianyang International Airport, which is about 2 and half hours by plane from Shanghai and Guangzhou. All customers from all over the world are welcome to visit us.

8. How to become your dealer?

Every company interested in power system instruments can contact us without hesitation, including website letters, emails, telephones, etc. We will contact you quickly according to your company information and cooperation intentions.
