Cable Management System High Voltage Underground TDR Cable Fault Pre-locator Instrument

Product Description

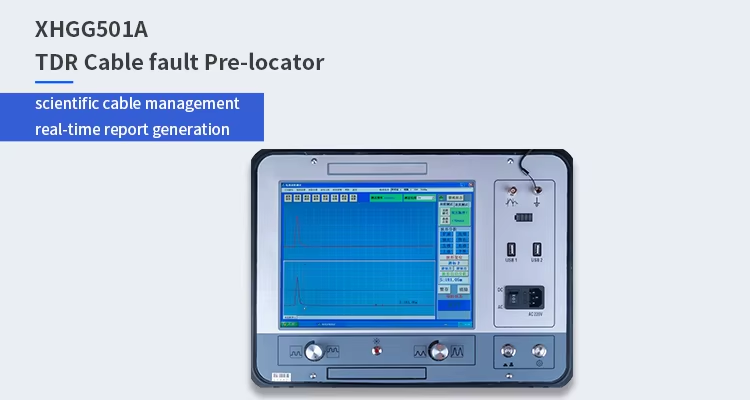

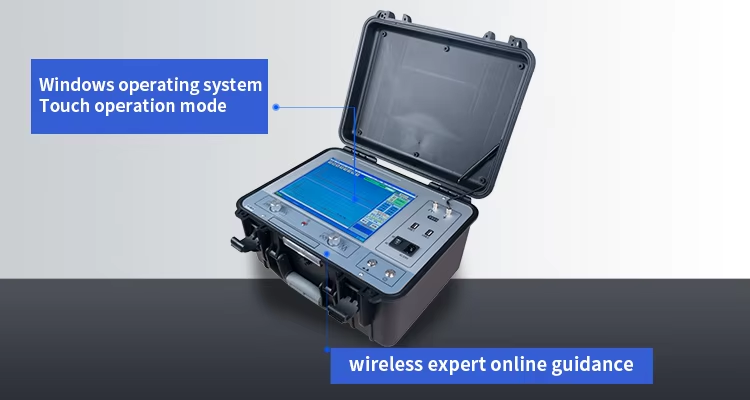

XHGG501A is designed for underground power cable fault pre-locating, to provide quick accurate and safe measurement solution.
Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault. Great for KV substation, civil power supply system and power energy sources applications.

* Accurate and rapid detection of the primary insulation cable
fault and sheath fault below 220kV, calibrate cable length;
accurate detection of cable laying trend and depth.System
components XHGG series flash cable fault tester, the core part of
the whole unit, mainly for the coarse testing of insulation fault
in the EHV cable.
* XHDD series cable fault locator is used to pinpoint the main EHV cable
insulation failure. XHLJ series cable path analyzer (referred to
as: Path instrument) is used to find direction and depth of buried
cables.
* High voltage equipment discharge sampler, high voltage test
equipment, energy storage capacitors, professional test lines
* Cooperated with flash tester to do coarse testing; with cable
fault locator to pinpoint the cable fault point
* Measure the power cable of different sections, different media of
various materials, Coaxial cable, Street light cables and short
circuit, open circuit short line fault of the low resistivity under
ground wire. Superior cable management system, automatically
generate test reports.

Sampling speed50/100/200/400MHz
Measuring methodflashover sampling method,low voltage impulse method
Measuring distance≥60km
Pulse amplitude400Vpp
Pulse widthadaptive
Reading resolution0.5m
Measurement accuracyrough measurement error: ±10m (absolute value) or 1% (relative
value)
