Portable Cable Fault Tester Set for Quick Detection of Cable Faults

Ask Lasest Price
Brand Name :	XZH TEST
Model Number :	502A+503C+535-4TS+507
Certification :	ISO,CE
Payment Terms :	T/T
Supply Ability :	1000 sets /Year
Delivery Time :	8-10 days

Add to Cart

Product Details
Company Profile

Portable Cable Fault Tester Set for Quick Detection of Cable Faults

XZH TEST underground cable fault locator set portable cable fault locator system

Portable Cable Fault Tester Set for Quick Detection of Cable Faults

1. Specification

System function

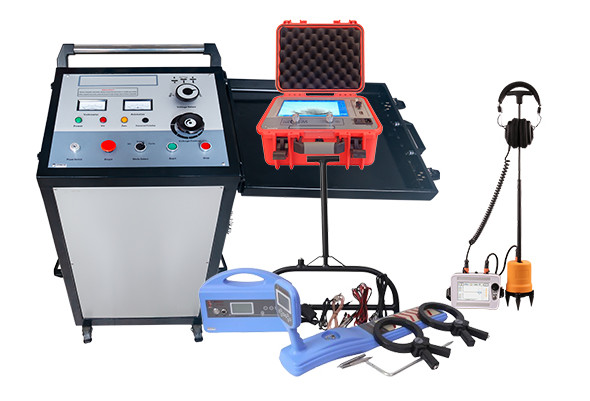

1.Use DC or high-voltage pulse to make the cable fault point flash over and discharge 2.Use the traveling wave reflection principle to make a rough measurement of all types of cable main insulation faults 3.Use the acoustic-magnetic synchronization method to make a precise measurement of all types of cable main insulation fault
I,High voltage surge generator XHHV535-4T
Output mode	DC, Single, Cycle
Output voltage	0-8kV/0-16kV/0-32kV, three voltage switchable
Built-in capacitor	64μF/16μF/4μF
Discharge energy	2048J
Impact power	2000VA
Impulse rate	Automatic impact for about 6 seconds, manual impact for any control time
Surge voltage levels switch	Manual
Voltage adjustment type	Continuous
Indication	High-voltage side voltage metering, indication of output voltage and current in real time
Operating modes switch	Manual
Continuous output current	60mA
Safe protection	With zero start protection function, safe and reliable
Discharge	Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device
Working power	AC 220V±15% ,50Hz±2Hz
DC withstand voltage testing	Output voltage adjustable and indication range 0-35Kv, output current indication range 0-20A
Burn current	Fault conditioning (burning) with current up to 60 mA @ 32 kV
Safety	Over-voltage, Over-current, Overheating protection. Automatic discharge after operation
Protection rating	Not lower than IP54
Dimensions(mm)	534L×444W×805H mm
Total weight	Not more than 120kg
II,TDR cable fault locator XHGG502A
Test method	Low voltage pulse, Impulse current, Impulse voltage, ARC multipls pulse
Sampling rate	1MHz～400MHz
Pulse output	Unipolar
Pulse Amplitude	300V
Pulse width	0.15μS/0.30μS /0.60μS/1.20μS/2.4μS/5.0μS/7.5μS/10μS
Measurement scope	≥120km
Measurement range	100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
Minimum resolution	0.07m
Measurement error	≤±(0.5％×L+1m),L is cable length
Signal gain	0…100%,adjustable
Propagation speed	10…999.9m/µs
Output Impedance	Automatic match
Trigger	Automatic continute
Working conditions	temperature -25℃～+65℃, relative humidity 85%, atmospheric pressure 750±30mmHg
III,Cable fault pinpointer XHDD503C
Fixed-point mode	Standard mode, enhanced mode, noise reduction mode, custom mode (ms, waveform)
Fixed point method	Intelligent time difference method, electromagnetic inspection method, acoustic measurement method
Positioning accuracy	Fixed point: 0.1m, Path: 0.1m
Display	TFT ultra-bright 5-inch, 800×480 true color
language	Graphical language is more intuitive
Gain	120dB, fully automatic adjustment, also can be adjusted manually
Frequency range	100～1600Hz
Dynamic Range	0～112dB(16 gears)
Synchronous trigger	Acoustic fully automatic synchronous trigger; magnetic field fully automatic synchronous trigger
Detection range	0.00～99.99ms,75mV～75V
Probe	Automatic mute, fully digital metal intelligent probe
Headphone	600Ω military-grade strong noise reduction and anti-interference technology
Working power	4*18650 Standard lithium battery
Working hours	More than 8 hours
Ambient temperature	-25～65℃; relative humidity: ≤90%
Weight	Host 0.6kg; Sensor 1.4kg
Waterproof grade	IP65
IV,Cable path comprehensive tester
Transmitter
Output frequency		Low frequency(815Hz), intermediate frequency(8kHz), high frequency(33kHz), radio frequency(83kHz)
Output power		10W,Four output levels: low, medium, high, full
Output voltage		150Vpp
Output mode		Direct connection method, coupling method, induction method
Display		Output mode, frequency, output power, loop resistance, loop current, battery remaining capacity, dangerous voltage alarm, etc.
Coupling clamp		Coupling inner diameter Φ150mm
Receiver
Working mode		Tracing, identification, Step voltage
Receiving frequency		Low frequency(815Hz), intermediate frequency(8kHz), high frequency(33kHz), radio frequency(83kHz)
Display		Depth, current, frequency, mode, gain, signal strength, date, time, etc.
Detection depth		≥10m
V Test cables
(Note: Due to the existence of 35kV high voltage, special high voltage cables are made and should be kept away from the site during operation.)
High voltage output cable	core wire 2.5mm2 red, withstand voltage 50kV DC, with shielding layer, outer diameter 14mm, length 10 meters, including installation of large spool.
Ground cable	grounding 3-column - main core 16mm2 transparent color, branch 2.5mm2, length 10 meters. Including installation of small spool.
