    8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode

    Ask Lasest Price
    Brand Name : XZH TEST
    Model Number : XHHV535-4TS
    Certification : CE
    Price :
    Payment Terms : T/T
    Supply Ability : 100 unit per month
    • Product Details
    • Company Profile

    8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode

    Product Description

    3-Gear Trolley-Type High Voltage Pulse Generator 8/16/32kv
    The XHHV535-4TS high voltage pulse generator can be used impulse discharge and withstand voltage test in low and high voltage cable fault test. High-precision test cable fault sampling waveform module and small transformer are installed inside, which can truly achieve the effect of not being damaged by impact, and it also has the functions of automatic timing impact, manual impact and withstand voltage test.

    This device integrates a high-voltage DC source, an energy storage capacitor, a discharge ball device, an automatic discharge device, and a voltage level switching device into a cart-type high-end experimental instrument. It is a trolley-type high-end experimental instrument. The equipment completely solves the problems of ease of use, portability, safety and reliability of traditional experimental devices.

    When the XHHV535-4TS trolley-type high-voltage pulse generator is in use, after selecting the function switch, press the start button to perform high-voltage boosting work. After use, press the stop button, and the internal system will automatically release the remaining high voltage on the accumulator.

    The high voltage surge generator also has the function of zero-start protection, which can make the operation of the device more safe and reliable. It has super short-circuit protection function, which can make the high-voltage output work directly to the ground. With three-gear voltage range and capacitance capacity switching function, users can choose different equipment voltage adaption gears according to different cable voltage needs, making the test process easier.
    3-Gear Trolley-Type High Voltage Pulse Generator 8/16/32kv
    Product Parameters
    Impulse high voltage0~32kV, 0~16kV, 0~8kV three gear adjustment
    High voltage partial pressure1.5 level
    Built-in capacitor4μF/32kV,16μF/16kV,64μF/8kV Adjustable three-speed adjustment
    Discharge powerboth are 2048J
    Impact power2KVA
    Output voltage polaritynegative polarity
    Impact timeabout 5 seconds for automatic impact, arbitrary control time for manual impact
    Over temperature protection85ºC
    Volume(mm)534L×444W×805H
    Weightnot more than 130kg
    Power supplyAC220V±10%, 50Hz±2Hz(60Hz can be customized)
    Ambient temperature-20~+50ºC





    3-Gear Trolley-Type High Voltage Pulse Generator 8/16/32kv

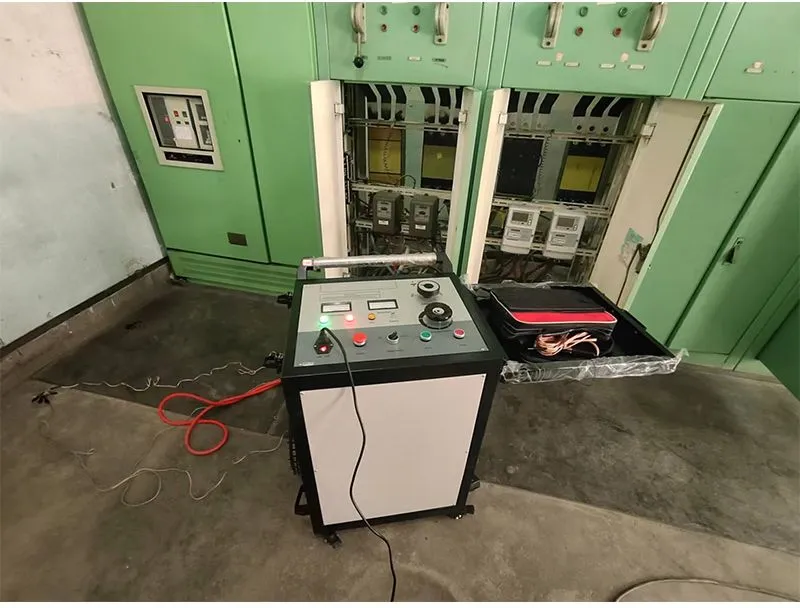

    On-site test
    3-Gear Trolley-Type High Voltage Pulse Generator 8/16/32kv
    3-Gear Trolley-Type High Voltage Pulse Generator 8/16/32kv
